Powering Quadrotors Wirelessly

🤖 check out more robots like this


We have covered many cool drones here. None of them are powered wirelessly. Sam M’s idea looks brilliant though. It involves using wireless power to get a drone to fly. This particular quadrotor “consumes anywhere between 5-10W when it hovers with a shield on.” As the developer explains, this set up was not designed for high efficiency but it does show how such a system could work.

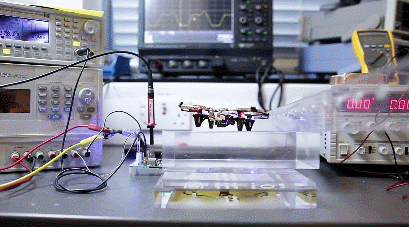

Wirelessly powered quadrotor

This quadrotor is powered completely via magnetic induction. Here is what the developer had to say:

The transmitter was implemented on a two layer PCB and was driven by a load independent Class EF inverter. The inverter operates at 13.56 MHz and uses a single GaN transistor from GaN Systems. The receiving coil consists a single turn of copper tape which was wound around the shield of the quadrotor. The receiver board consists of a Class D rectifier and a DC/DC converter.

More info is available here.
